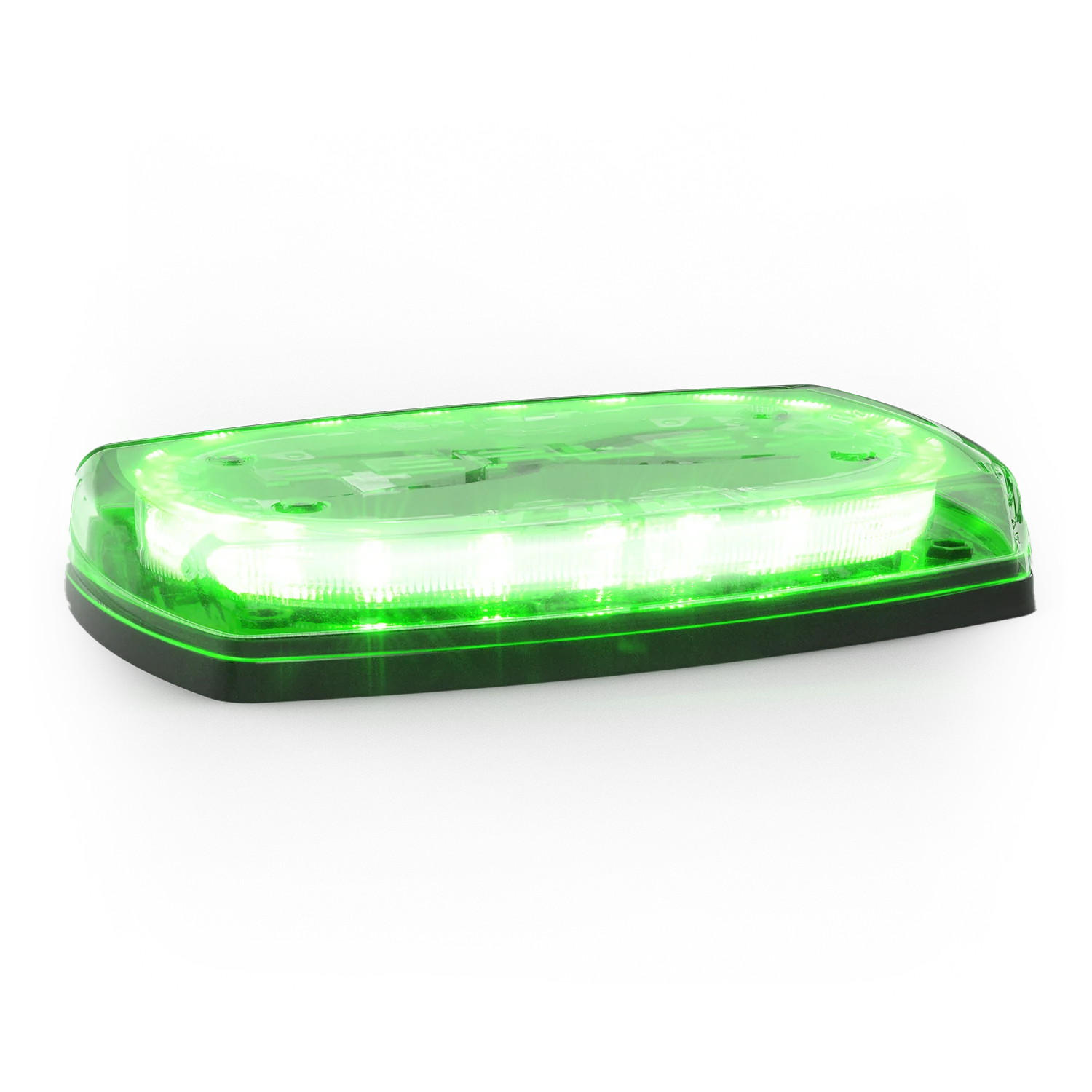

ECCO 5540 Series Reflex Dual Color 10" Mini Lightbar

ECCO’s 5540 Series LED minibar is a compact and powerful rooftop warning light providing 360 degrees of amber warning. These 10” Reflex® minibars feature 35 single-color or 91 dual-color flash patterns and come in permanent or vacuum- magnet mounting options. Vacuum-magnet models are available in two versions, cigarette plug or AC plug, and provide on/off control and flash pattern selection from inside the cab of the work truck or commercial vehicle. SAE Class I rating provides maximum brightness for on-highway and off-highway applications, all backed by a 5-year no-hassle warranty.

Features:

• 12-24 VDC, 3.4 Amps
• Four LED reflector modules, each comprising 6 (single-color) or 12 (dual-color) LEDs
• provide high intensity light output
• 35 (single-color) and 91 (dual-color) flash paterns
• Polycarbonate base & low profile lens
• Available in 4 bolt or vacuum-magnet mounting options (-VM comes with a cigarette
• plug and -VMAC comes with an AC plug)
• Temperature Range: -22°F to +122°F (-30°C to +50°C)

Specifications:

• Compact 10” minibar with our lowest profile at 2”
• Four LED reflectors provide high intensity light output

• Syncs with other ECCO warning lights
• 4 bolt or vacuum-magnet mounting options:
• VM comes with a cigarette plug, VMAC comes with an AC plug
• Polycarbonate base & low profile lens
• 1.5“ H x 10“ L x 6.75“ D (38mm H x 254mm L x 171mm D)
• 12-24 VDC, 3.4 Amps
• LED Colors: Amber/White, Amber/Blue, Amber/Green

• Lense Color: Clear
• Flash Patterns: 91
• Approvals: SAE Class I, CA T13, CE, UKCA, R10, R65, IP65, IP69K, RoHS, REACH
• Warranty: 5 Year
