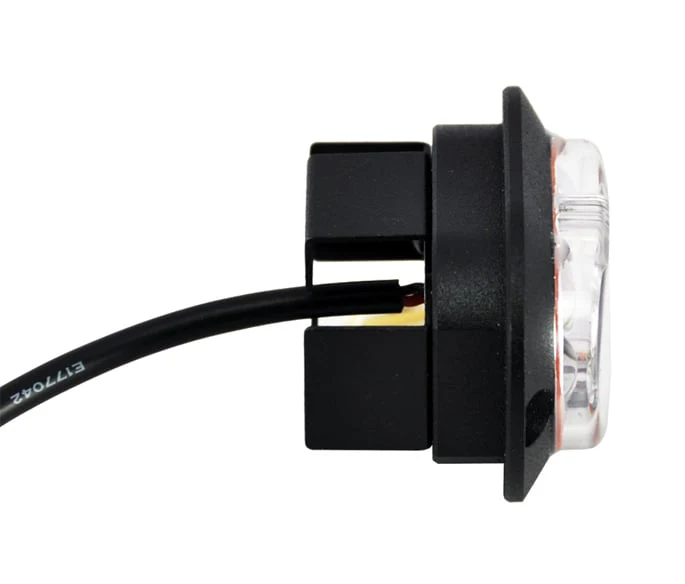

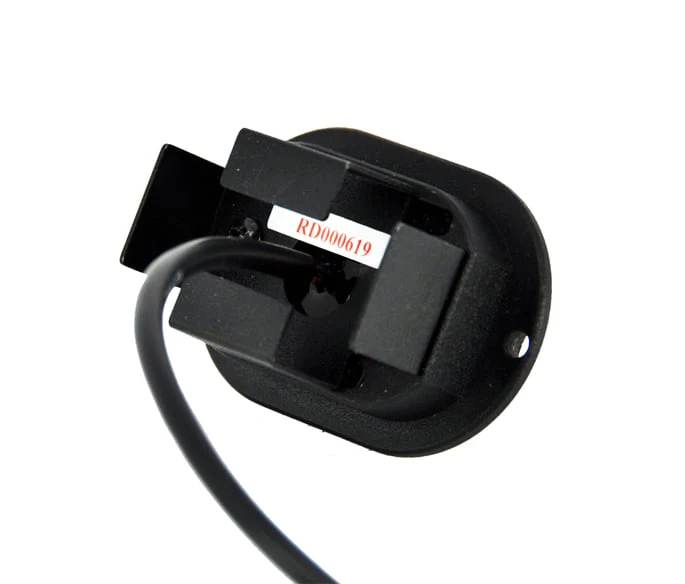

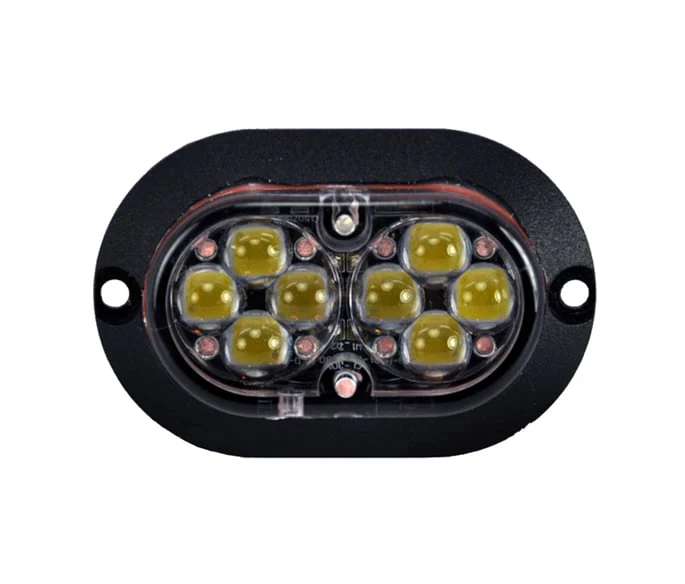

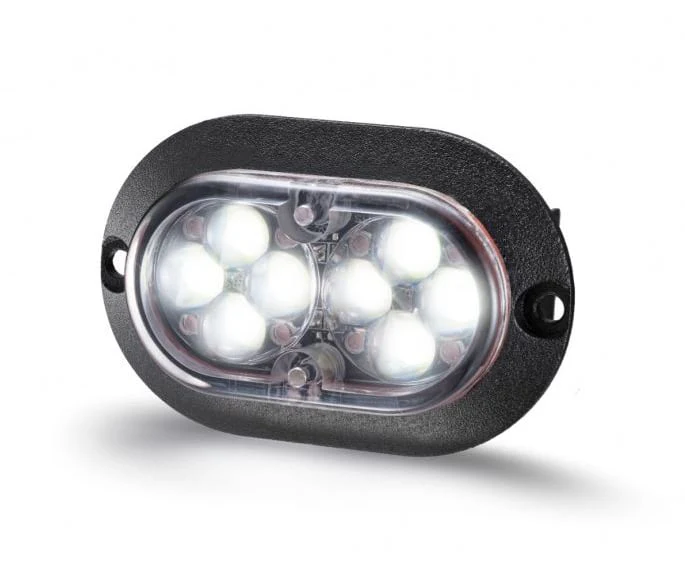

Strobes N' More EFlood Mini Surface Mount

The EFlood Mini from Strobes N' More packs powerful output into a compact, durable design. Offering 1280 lumens of bright, 6000K flood light, this self-contained unit is ideal for backup lighting, body mount applications, or anywhere additional illumination is needed. With a slim flange mount design and simple two-wire installation, the EFlood Mini is a reliable solution built for harsh environments.

Features:

• 1280 Lumen output
• 4 High-efficiency 3W LEDs
• Flood optics for wide light dispersion
• Simple 2-wire installation
• Rugged aluminum housing with clear PC lens
• Compact flange mount design
• Mounting screws included
• 5 Year Warranty

Specifications:

• Voltage: 12~24 VDC
• Current Draw: 0.7A @ 13.5V / 0.4A @ 27.5V
• Light Output: 1280 Lumens
• LEDs: 4 x 3W LEDs
• Flash Pattern: Steady burn
• Housing: Black Aluminum
• Lens: Clear Polycarbonate
• Dimensions (with mount): 2.5" W x 1.5" H x 1.5" D

Installation:

• Black wire: Ground – connect to negative terminal or vehicle chassis
• Red wire: Power – connect to +12~24 VDC power source


Looking to add length to your wire? Use our Wire Size Calculator »
