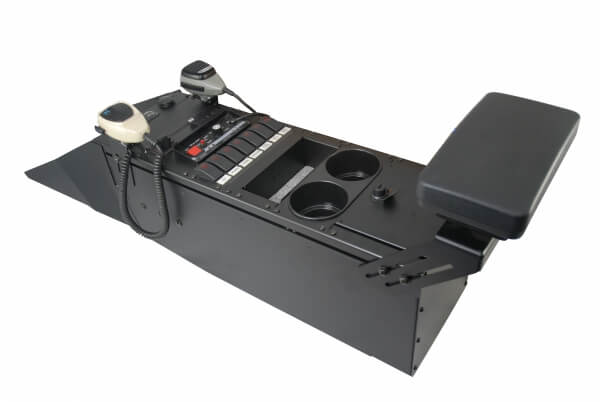

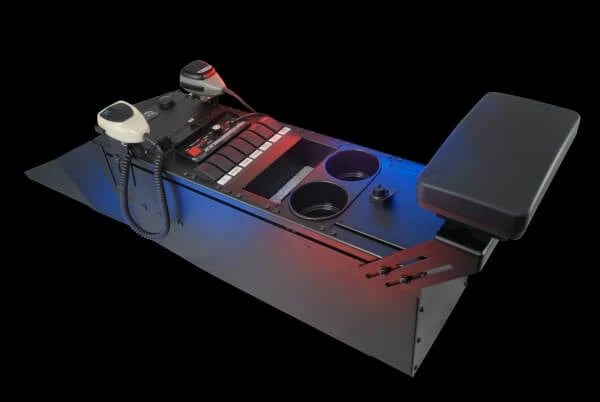

Vehicle Specific 25 Console For 2011 2020 Dodge Charger (Police Package)

Special Order Item

Features:

• 25" console for 2011-2020 Dodge Charger (Police Package)
• 9.5" max depth at rear and 7.375" min at front of the console. intended for applications when more depth is needed such as self contained/one piece radio's or long control heads (see side view measurement diagram)
• See "Side View Depth Measurements" under the resources tab (above) for mounting depth allowance of control heads and/or options
• Custom fit console uses OEM floor mounts no permanent vehicle modification required
• Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
• 1.5" high plate C-EB15-DAP-1P available for OEM aux input module in Charger street appearance applications. (must specify)
• Includes 3 cutouts for two OEM 12 volt plug outlets and one MP3/USB port in front trim panel cover
• The cutouts will accept both the OEM lighter plugs or the Havis lighter plug kit (C-HK-181) included
• Vehicle mounting kit included
• If using a vertical gun rack between seats, a partition with gun alcove is recommended
• PKG-MD-ARM-0603 or C-HDM-204 can be mounted to the side of the console housing, but lower mounting holes must be drilled by the installer
• C-VS-0809-CHGR-1 console is recommend for laptop applications
• C-VS-2400-CHGR-2 console is recommended for low profile applications
• C-SM-SA, C-SM-SA-1 and C-SM-SA-1-HD will Bolt to the upper nut track or installer can drill mount holes as desired

Specifications:

• Overall measurements: 9" high x 9" wide x 28.25" long (including forward trim panel)
• C-VS-0809-CHGR-1 console is recommended for laptop applications
• Accepts C-SM-MMP, C-SM-SA, C-SM-SA-1 and C-SM-SA-1-HD
• Gross weight: 22 lbs

Informational Links:

• Product Sales Sheet (PDF)
• Isoview Drawing (JPG)
• Side View Depth Measurements (JPG)

Sales staff will reach out to obtain equipment information.
