Whelen 500 Series TIR6 Super LED

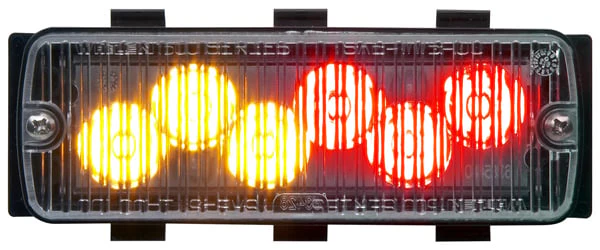

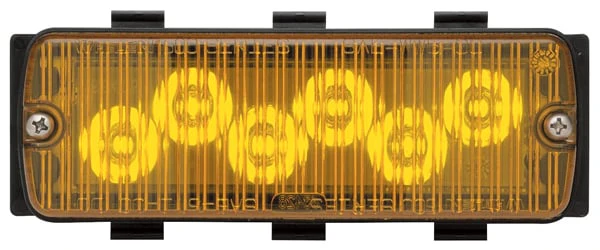

500 Series TIR6 Super-LED offers an almost limitless choice of single or split color lightheads with housing and mounting options to meet all your requirements. These lightheads feature a six Super-LED panel, three Super-LEDs per color, in a single lighthead. Combined with the TIR clear outer lens, this design maximizes light output for peak split color light dispersion. The TIR6 lighthead is one of the most popular lighthead used by emergency responders worldwide for its superior light output and design.

This product is available in 24 VDC, please call (401) 451-4487 for pricing.

Features:

• New split color Super-LED modules with standard clear outer lens (colored lenses available separately, please contact us for ordering info)
• Wide angle visibility and high intensity rivals strobe with only 30% of the amp draw
• 12 VDC
• Whelen's SmartLED® design alternately or simultaneously flashes each color segment (3 x 3) in any of five Scan-Lock^TM flash patterns in Phase 1 & Phase 2 and includes Steady-Burn
• The "synch" interconnect wire allows up to eight lightheads to be synchronized together
• TIR6 and LIN6 modules are available in any combination of split colors: amber, blue, red or white
• Each module requires a mounting option, for horizontal or vertical mounting, in a wide range of choices. These mounting accessories, purchased separately, meet all your specific needs: chrome plated or black polycarbonate trim ring, surface mount, rubber grommet, pedestal/swivel mount, or round bar mounts
• 6" integral wire leads include AMP Mate-N-Lok® connectors
• Epoxy encapsulated electronics provide vibration and moisture free performance
• 5 year warranty on LEDs
• 1-5/8' (41mm) H x 5' (127mm) W

Optional Mounts:

• 5FLANGEC - Chrome-Plated Trim Ring, Kit
• 5FLANGEB - Black Trim Ring, Kit
• 5FLANGEP - Polished Aluminum Flange
• 5TSMAB - Black Surface Mount Adapter
• 5TSMAC - Chrome-Plated Surface Mount Adapter
• 5BRUSH - Aluminum Brush Guard, Includes Surface Mount Adapter, 5mm Requires Optional Flange Purchased Separately
• 5GROMMET - Grommet Mount Kit
• 5GBKT1 - Optional "L" Bracket for use with Grommet Mount Lighthead Only, Each
• 5BKT1 - Mounting Bracket for 500 Series Super-LED
